The A/V hardware in the Dean's Conference Room (Tichenor 310) has been updated. Use the instructions below to manage the equipment for different fucctions Currently there are 3 monitors in the room all connected in parallel -- what is one monitor appears on all monitors. In addition there is a camera on the West wall, A PC computer in the Credenza (use your AU GID and password to sign in), Speakers and Microphones in the ceiling and an Apple TV in the Credenza. Zoom meetings should be conducted with the computer in the credenza to connect to the camera, speakers and microphone. Presentations can be initiated from the Credenza PC, or a personal computer plugged into the HDMI cable in the Credenza or using Apple Play to connect and Apple device wirelessly to the Apple TV. Click on any image to enlarge.
|
Equipment List. 1) TV and Camera installed on West Wall, Additional Monitors on North and South Wall. Array Microphone and speakers in the ceiling 2) Credenza PC, Keyboard and Mouse 3) Extra HDMI connection for personal Laptop 4) Apple TV in the credenza.
|
|
| Touch the AMX Panel to power up the system. | |
|
The AMX controls determine the input to the Monitors on the Top Row -- choices are PC (in the Credenza), Laptop HDMI, or Apple TV. Bottom row adjusts the volume to the room speakers and the camera controls for adjusting pan, tilt, left, right motion and zooming in or out. Use Preview screen to adjust picture as needed. |
|
|

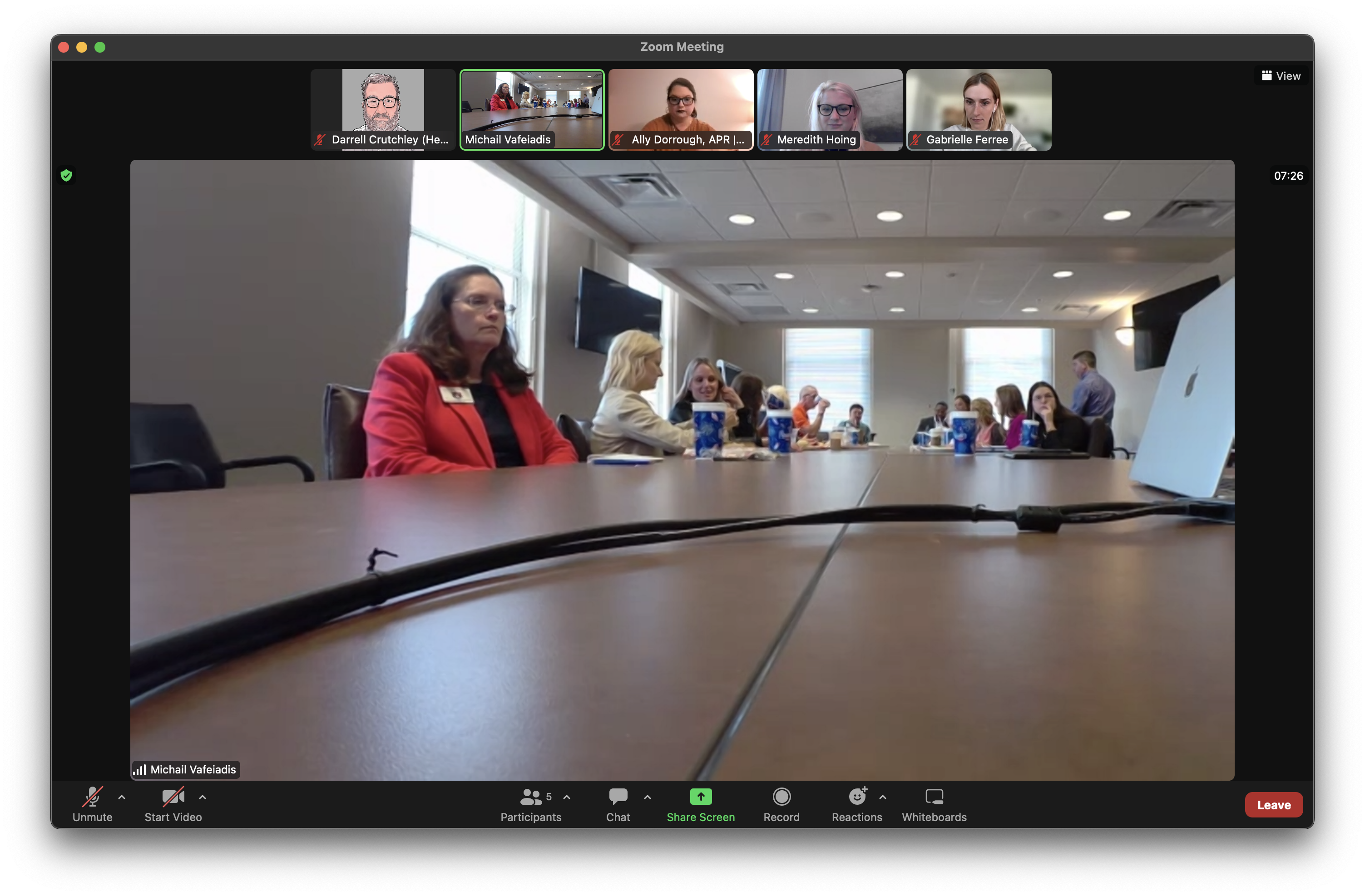

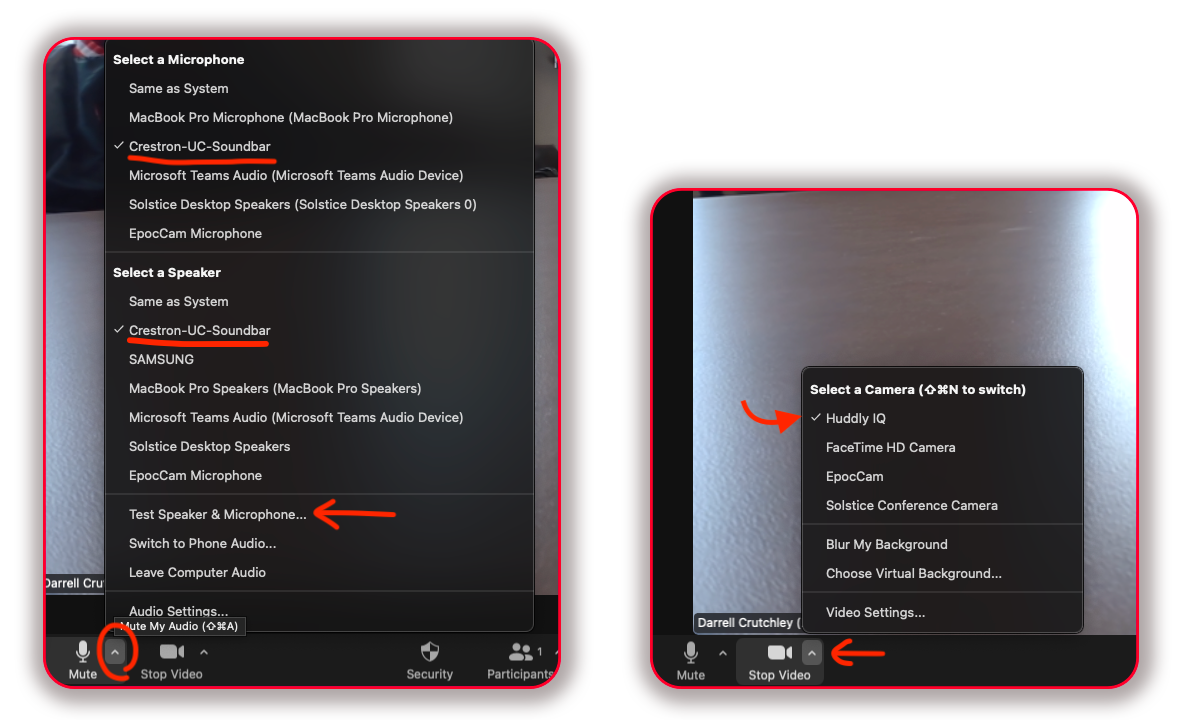

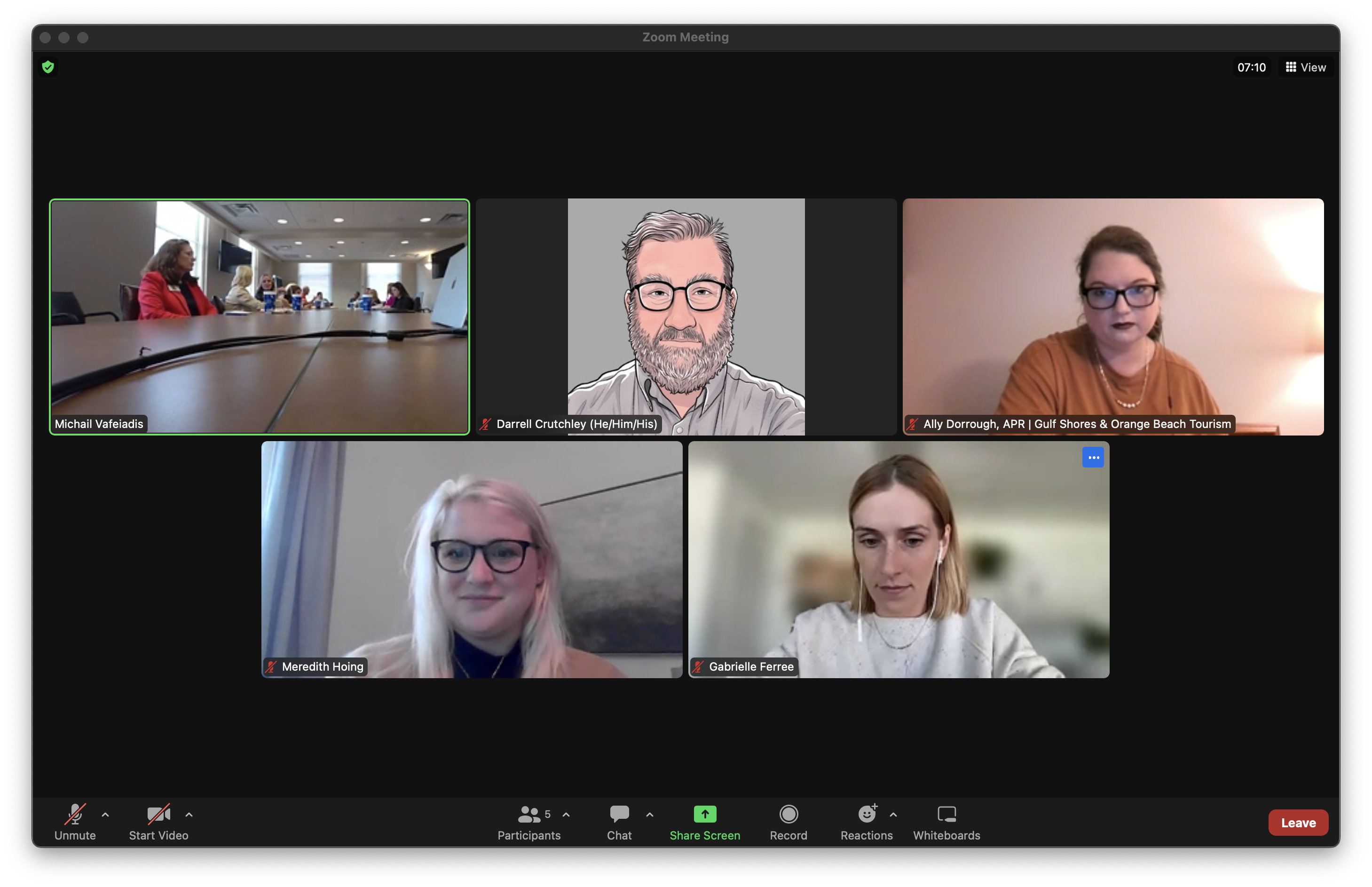

Using Zoom from the Credenza PC automatically connects to the room microphone and speaker. Before your meeting check to make certain all are working correctly. 5) Use the Test Speaker & Microphone ... option to make sure you will be able to hear and speak to your meeting participants. Microphone is 2-Realtek(R) Audio Speaker is 2-HD Audio Driver for Display Audio) Camera is USB Capture HDMI |
